LT1358CS8#TRPBF

LT1358CS8#TRPBF, Op Amps, SOIC, 25MHz, 2.5mA, Linear Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.50

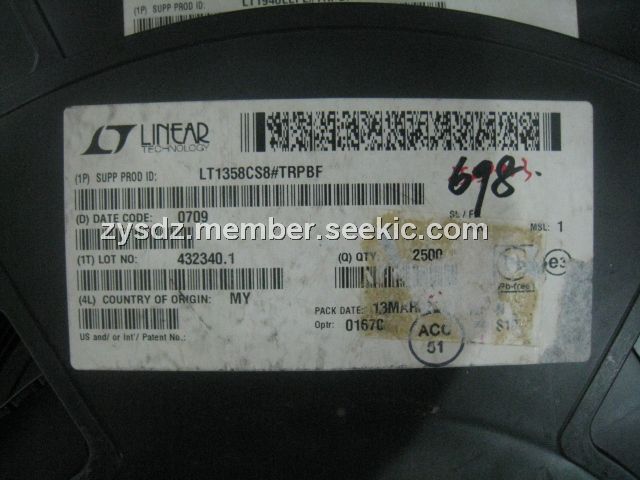

PartNumber:: LT1358CS8#TRPBF

Brand:: Linear Technology - Linear | Pack: SOP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Zhao's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-30

From Other Seller

Part Number:LT1358CS8#TRPBF
US $1.00 - 1.50
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LT1358CS8#TRPBF is an Op Amps. The LT1358CS8#TRPBF is dual and quad low power high speed operational amplifiers with outstanding AC and DC performance. The LT1358CS8#TRPBF feature much lower supply current and higher slew rate than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with matched high impedance inputs and the slewing performance of a current feedback amplifier. The high slew rate and single stage design provide excellent settling characteristics which make the circuit an ideal choice for data acquisition systems. Each output drives a 500W load to ±12.5V with ±15V supplies and a 150W load to ±3V on ±5V supplies. The amplifiers are stable with any capacitive load making them useful in buffer applications. The applications of the LT1358CS8#TRPBF include Wideband Amplifiers, Buffers, Active Filters, Data Acquisition Systems and Photodiode Amplifiers.

Parametrics

LT1358CS8#TRPBF absolute maximum ratings : (1)Total Supply Voltage (V+ to V–) : 36V; (2)Differential Input Voltage (Transient Only) (Note 2): ±10V; (3)Input Voltage: ±VS; (4)Output Short-Circuit Duration (Note 3): Indefinite; (5)Operating Temperature Range (Note 7): –40℃ to 85℃; (6)Specified Temperature Range (Note 8): –40℃ to 85℃; (7)Maximum Junction Temperature (See Below) Plastic Package: 150℃; (8)Storage Temperature Range: –65℃ to 150℃; (9)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT1358CS8#TRPBF features: (1)25MHz Gain Bandwidth; (2)600V/μs Slew Rate; (3)2.5mA Maximum Supply Current per Amplifier; (4)Unity-Gain Stable; (5)600μV Maximum Input Offset Voltage; (6)500nA Maximum Input Bias Current; (7)120nA Maximum Input Offset Current; (8)20V/mV Minimum DC Gain, RL=1k; (9)115ns Settling Time to 0.1%, 10V Step; (10)220ns Settling Time to 0.01%, 10V Step; (11)±12.5V Minimum Output Swing into 500Ω; (12)±3V Minimum Output Swing into 150Ω; (13)Specified at ±2.5V, ±5V, and ±15V.
