Product Summary
The ATF22V10B-15JC is a high-performance EE PLD.
Parametrics
ATF22V10B-15JC absolute maximum ratings: (1)Temperature under bias: -55 to 125℃; (2)Storage temperature: -65 to 150℃; (3)Voltage on any pin with respect to ground: -2 to 7V; (4)Voltage on input pins with respect to ground during programming: -2 to 14V; (5)Programming voltage with respect to ground: -2 to 14V.
Features
ATF22V10B-15JC features: (1)Industry standard architecture; (2)High-speed, electrically-erasable programmable logic devices; (3)Several power saving options; (4)CMOS and TTL compatible inputs and outputs; (5)Advanced flash technology; (6)High-reliability CMOS process; (7)Full military, commercial and industrial temperature ranges; (8)Dual-in-line and surface mount packages in standard pinouts; (9)PCI compliant.

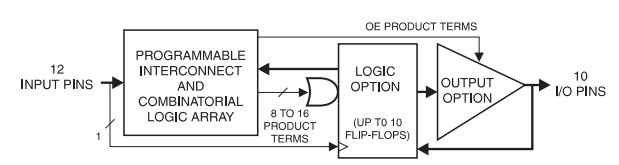

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATF22V10B-15JC |
Atmel |
SPLD - Simple Programmable Logic Devices 500 Gate |
Data Sheet |
Negotiable |
|
||||
