Product Summary

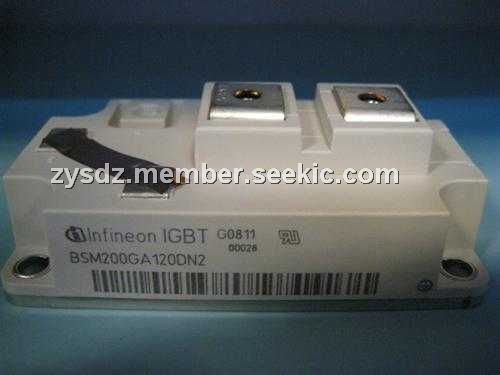

The BSM200GA120DN2 is an IGBT Power module.

Parametrics

BSM200GA120DN2 absolute maximum ratings: (1)Collector-emitter voltage : 1200 V; (2)Gate-emitter voltage : ± 20V; (3)DC collector current : 300A; (4)Pulsed collector current, tp = 1 ms : 600A; (5)Power dissipation per IGBT : 1550W; (6)Chip temperature : 150℃; (7)Storage temperature : -40 to + 125℃.

Features

BSM200GA120DN2 features: (1)Single switch; (2)Including fast free-wheeling diodes; (3)Package with insulated metal base plate.

Diagrams

BSM200GA120DN2 dimension
