LTC2636CMS-HMX12#PBF

LTC2636-12 - Octal 12-Bit SPI VOUT DACs with 10ppm/°C Reference

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.90~5.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.90~5.40

PartNumber:: LTC2636CMS-HMX12#PBF

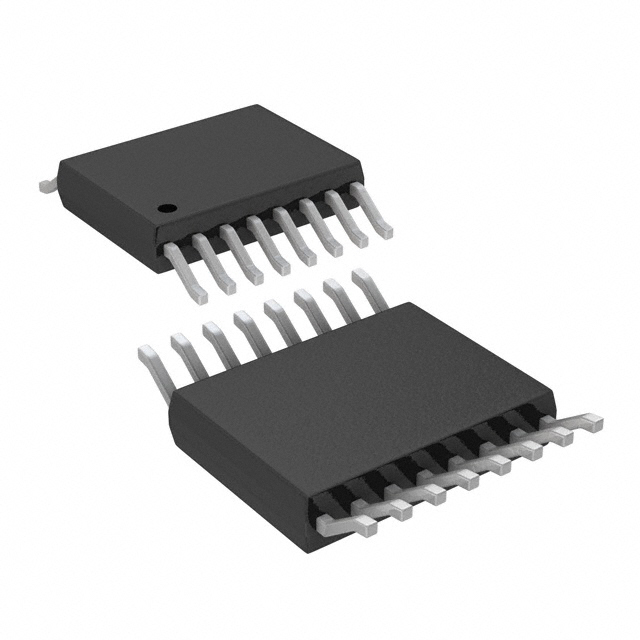

Brand:: Linear Technology - Linear | Pack: MSOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Zhao's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-18

From Other Seller

Part Number:LTC2636CMS-HMX12#PBF
US $4.90 - 5.40
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ALC662

US $0.80 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LTC2636 is a family of octal 12-, 10-, and 8-bit voltage-output DACs with an integrated, high-accuracy, low-drift 10ppm/°C reference in 14-lead DFN and 16-lead MSOP packages. It has a rail-to-rail output buffer and is guaranteed monotonic. The LTC2636-L has a full-scale output of 2.5V, and operates from a single 2.7V to 5.5V supply. The LTC2636-H has a full-scale output of 4.096V, and operates from a 4.5V to 5.5V supply. Each DAC can also operate with an external reference, which sets the DAC full-scale output to the external reference voltage.

These DACs communicate via an SPI/MICROWIRE-compatible 3-wire serial interface which operates at clock rates up to 50MHz. Hardware clear (CLR) and asynchronous DAC update (LDAC) pins are available in the MSOP package. The LTC2636 incorporates a power-on reset circuit. Options are available for reset to zero-scale or reset to mid-scale in internal reference mode, or reset to mid-scale in external reference mode after power-up.

Among them if you have any need quote or problem, please could you tell us.
E-mail: abel.huang911@gamil.com
MSN:abel.huang@hotmail.com

Features

Integrated Precision Reference
2.5V Full-Scale 10ppm/°C (LTC2636-L)
4.096V Full-Scale 10ppm/°C (LTC2636-H)
Maximum INL Error: 2.5LSB (LTC2636-12)
Low Noise: 0.75mVP-P 0.1Hz to 200KHz
Guaranteed Monotonic Over –40°C to 125°C Temperature Range
Selectable Internal or External Reference
2.7V to 5.5V Supply Range (LTC2636-L)
Ultralow Crosstalk Between DACs (<2.4nV?s)
Low Power: 0.9mA at 3V (LTC2636-L)
Power-On-Reset to Zero-Scale/Mid-Scale
Double-Buffered Data Latches
Tiny 14-Lead 4mm × 3mm DFN and 16-Lead MSOP Packages
