Product Summary
The LTC3857EGN-1#PBF is a dual sync step-down controller. Its applications include automotive always-on systems, battery operated digital devices, distributed DC pwoer systems.
Parametrics
LTC3857EGN-1#PBF absolute maximum ratings: (1)Input supply voltage: -0.3 to 40V; (2)Topside driver voltages: -0.3 to 46V; (3)Switch voltage: -5 to 40V; (4)Maximum current sourced into PIN: 100μA; (5)Operating temperature range: -40 to 85℃; (6)Storage temperature range: -65 to 150℃.
Features
LTC3857EGN-1#PBF features: (1)Low operating IQ: 50μA; (2)Wide output voltage range: 0.8V≤VOUT≤24V; (3)Wide VIN range: 4V to 38V; (4)RSENSE or DCR current sensing.

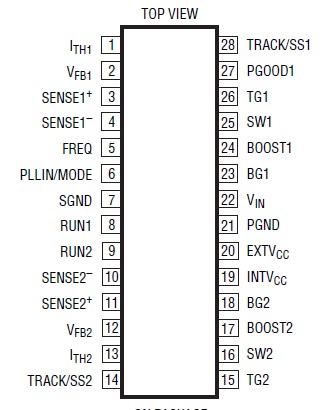

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

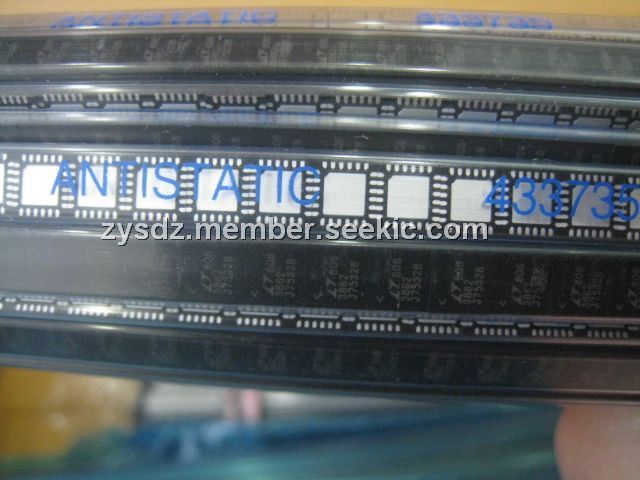

 LTC3857EGN-1#PBF |
|
IC REG CTRLR BUCK PWM CM 28-SSOP |
Data Sheet |
|
|
||||||||||
