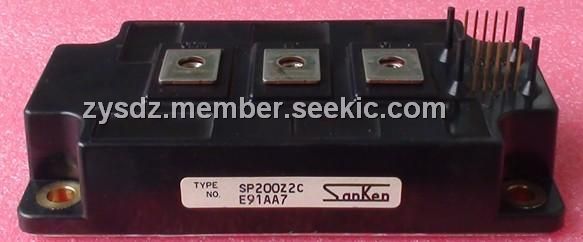

Product Summary
The SP200Z2C is a +5V High–Speed RS-232 Transceiver with 0.1μF Capacitors. The SP200Z2C features low–power CMOS construction and Sipex patented (5,306,954) on-board charge pump circuitry to generate the ±10V RS-232 voltage levels, using 0.1μF charge pump capacitors to save board space and reduce circuit cost. The SP200Z2C features a low–power shutdown mode, which reduces power supply drain to 1μA. A WakeUp function keeps the receivers active in the shutdown mode.
Parametrics
SP200Z2C absolute maximum ratings: (1)VCC: +6V; (2)V+: (VCC– 0.3V) to +13.2V; (3)V–: 13.2V; (4)Input Voltages TIN: –0.3V to (VCC +0.3V); (5)RIN: ±20V; (6)Output Voltages TOUT: (V+, +0.3V) to (V–, –0.3V) ROUT: –0.3V to (VCC +0.3V); (7)Short Circuit Duration on TOUT: Continuous; (8)Power Dissipation Plastic DIP: 375mW (derate 7mW/℃ above +70℃); (9)Small Outline: 375mW(derate 7mW/℃ above +70℃).
Features
SP200Z2C features: (1)0.1μF External Charge Pump Capacitors; (2)120kbps Data Rate; (3)Standard SOIC and SSOP Packages; (4)Multiple Drivers and Receivers; (5)Single 5V Supply Operation; (6)1μA Shutdown Mode; (7)WakeUp Feature in Shutdown Mode; (8)Tri–State Receiver Outputs; (9)Meets All RS-232 and V.28 Specifications; (10)Improved Driver Output Capacity for Mouse Applications; (11)±10kV ESD Protection.

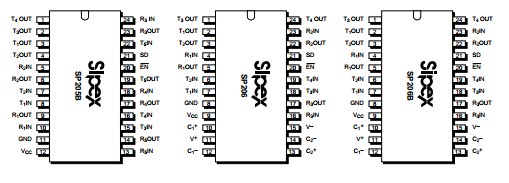

Diagrams
 |
