Product Summary

The AD9927BBCZ is a 14-bit CCD signal processor with V-driver and precision timing generator. Its applications include digital still camera.

Parametrics

AD9927BBCZ absolute maximum ratings: (1)AVDD: -0.3 to 2V; (2)TCVDD: -0.3 to 2V; (3)RGVDD: -0.3 to 3.9V; (4)Digital outputs: -0.3 to IOVDD+0.3V.

Features

AD9927BBCZ features: (1)Integrated 18-channel V-driver; (2)1.8V AFETG core; (3)Internal LDO regulator and charge pump circuitry; (4)Compatibility with 3V or 1.8V systems; (5)General-purpose outputs for shutter and system support.

Diagrams

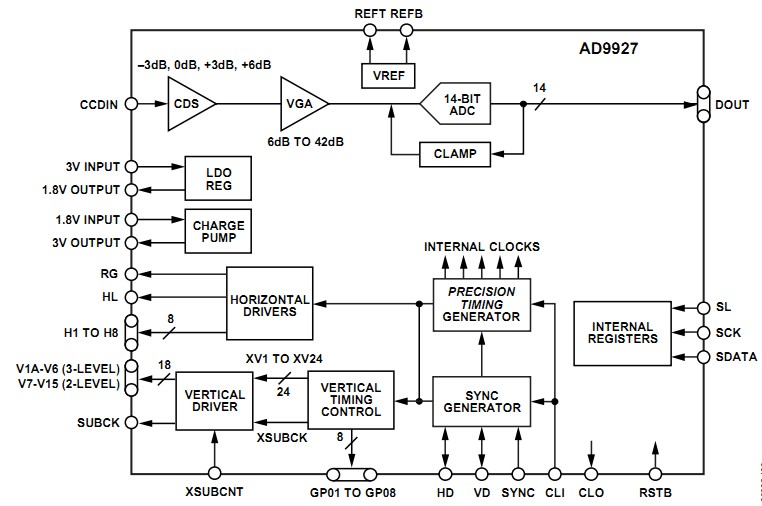

AD9927BBCZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD9927BBCZ
AD9927BBCZ

Analog Devices Inc

IC CCD SIG PROC 14BIT 128-CSPBGA

Data Sheet

1-25: $10.01
25-100: $9.30
100-250: $9.12
250-500: $8.94
500-1000: $8.83
1000-5000: $8.58
AD9927BBCZRL
AD9927BBCZRL

Analog Devices Inc

IC CCD SGNL PROC 14BIT 128CSPBGA

Data Sheet

1-2000: $8.83
