Product Summary
The ATF22V10B is a high-performance electrically erasable programmable logic device.
Parametrics
ATF22V10B absolute maximum ratings: (1)Temperature under bias: -55 to 125℃; (2)Storage temperature: -65 to 150℃; (3)Voltage on any pin with respect to ground: -2 to 7V; (4)Voltage on input pins with respect to ground during programming: -2 to 14V; (5)Programming voltage with respect to ground: -2 to 14V.
Features
ATF22V10B features: (1)Industry standard architecture; (2)High-speed, electrically erasable programmable logic devices; (3)CMOS and TTL compatible inputs and outputs; (4)Advanced flash technology; (5)High-reliability CMOS process.

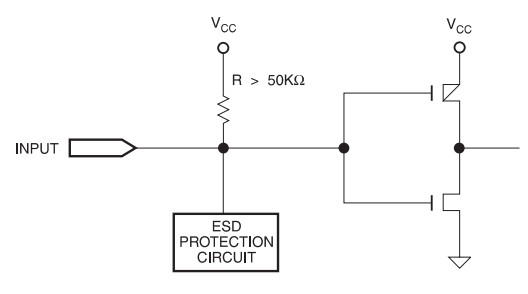

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATF22V10B |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
ATF22V10B-10GM/883 |
Atmel |
SPLD - Simple Programmable Logic Devices EEPLD 500 GATE STD PWR 5V 10NS |
Data Sheet |
Negotiable |
|
||||
|
ATF22V10B-15GM/883 |
Atmel |
SPLD - Simple Programmable Logic Devices EEPLD 500 GATE STD PWR 5V 15NS |
Data Sheet |
Negotiable |
|
||||
 |
ATF22V10B-10NM/883 |
Atmel |
SPLD - Simple Programmable Logic Devices EEPLD 500 GATE STD PWR 5V 10NS |
Data Sheet |
Negotiable |
|
||||
|
ATF22V10B-15JI |
Atmel |
SPLD - Simple Programmable Logic Devices 500 Gate |
Data Sheet |
Negotiable |
|
||||
|
ATF22V10B-15JC |
Atmel |
SPLD - Simple Programmable Logic Devices 500 Gate |
Data Sheet |
Negotiable |
|
||||
|
ATF22V10B-15NM/883 |
Atmel |
SPLD - Simple Programmable Logic Devices EEPLD 500 GATE STD PWR 5V 15NS |
Data Sheet |
Negotiable |
|
||||
 |
ATF22V10B-15SI |
Atmel |
SPLD - Simple Programmable Logic Devices 500 Gate |
Data Sheet |
Negotiable |
|
||||
