Product Summary

The LT1936IMS8E#PBF is a step-down switching regulator. Its applications include automotive battery regulation, industrial control supplies, unregulated wall adapters.

Parametrics

LT1936IMS8E#PBF absolute maximum ratings: (1)VIN voltage: -0.4 to 36V; (2)BOOST voltage: 43V; (3)Operating temperature range: -40 to 125℃; (4)Maximum junction temperature: 150℃; (5)Lead temperature: 300℃.

Features

LT1936IMS8E#PBF features: (1)wide input range: 3.6 to 36V; (2)SHORT-circuit protected over full input range; (3)1.9A guaranteed minimum switching current; (4)5V at 1.4A from 10V to 36V input; (5)3.3v at 1.4a from 7v to 36v input.

Diagrams

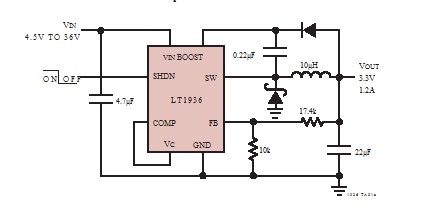

LT1936IMS8E#PBF diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LT1936IMS8E#PBF
LT1936IMS8E#PBF

IC REG BUCK ADJ 1.4A 8MSOP
Data Sheet
0-400: $2.33
