Product Summary

The MAX17480GTL+T is a mobile serial VID controller. Its applications include mobile AMD SVI core supplies, multiphase CPU core supplies, voltage-positioned, step-down converters.

Parametrics

MAX17480GTL+T absolute maximum ratings: (1)VDD, VIN3, VCC, VDDIO to AGND: -0.3 to 6V; (2)LX3 RMS current: ±4A; (3)Continuous temperature range: 1778mW; (4)Lead temperature: 300℃; (5)Junction temperature: 150℃; (6)Operating temperature range: -40 to 105℃.

Features

MAX17480GTL+T features: (1)Dual-output fixed-frequency core supply controller; (2)4A internal switch northbridge SMPS; (3)±0.5% VOUT accuracy over line, load, and temperature; (4)AMD SVI-compliant serial interface with switchable address; (5)Integrated boost switches; (6)Adjustable slow-rate control.

Diagrams

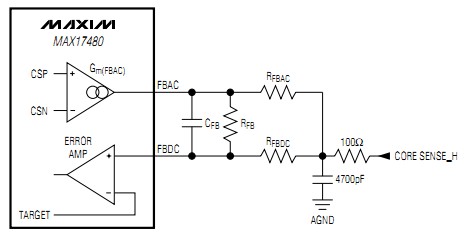

MAX17480GTL+T diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX17480GTL+T
MAX17480GTL+T
Maxim Integrated Products
Display Drivers & Controllers 2-/3-Output Mobile erial VID Ctlr
Data Sheet
0-1949: $4.41
1949-2500: $4.41
